Cadex Aero Integrated Handlebar
Couldn't load pickup availability
Cadex Aero Integrated Handlebar

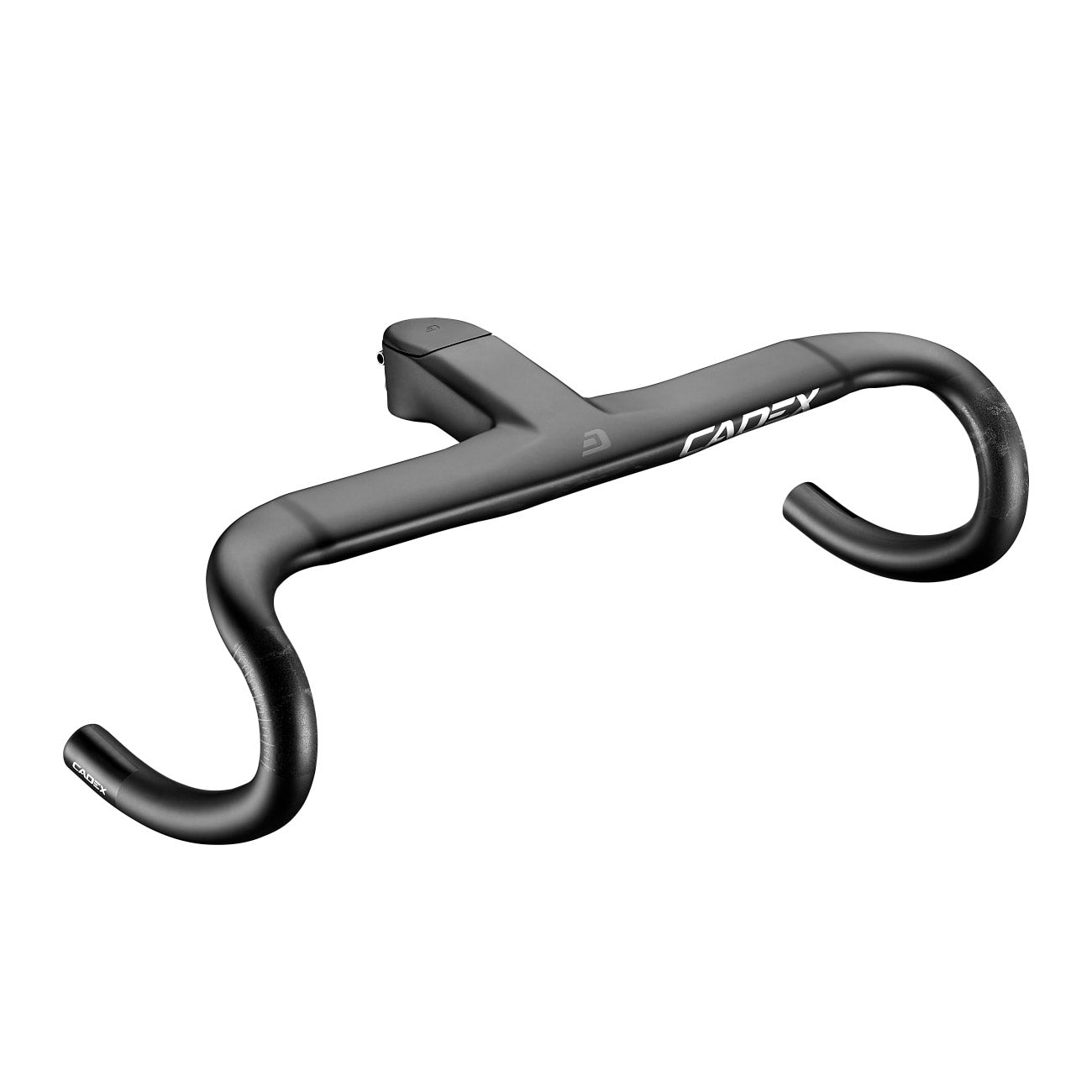

The Cadex Aero integrated handlebar is designed for the more experienced and competitive rider.
The flattened uppers reduce frontal surface area for those times when you’re deep in the saddle and pushing hard. The shallow 125mm drop and long 80mm reach reinforce the aerodynamic stance and make hand position transitions smooth and easy.

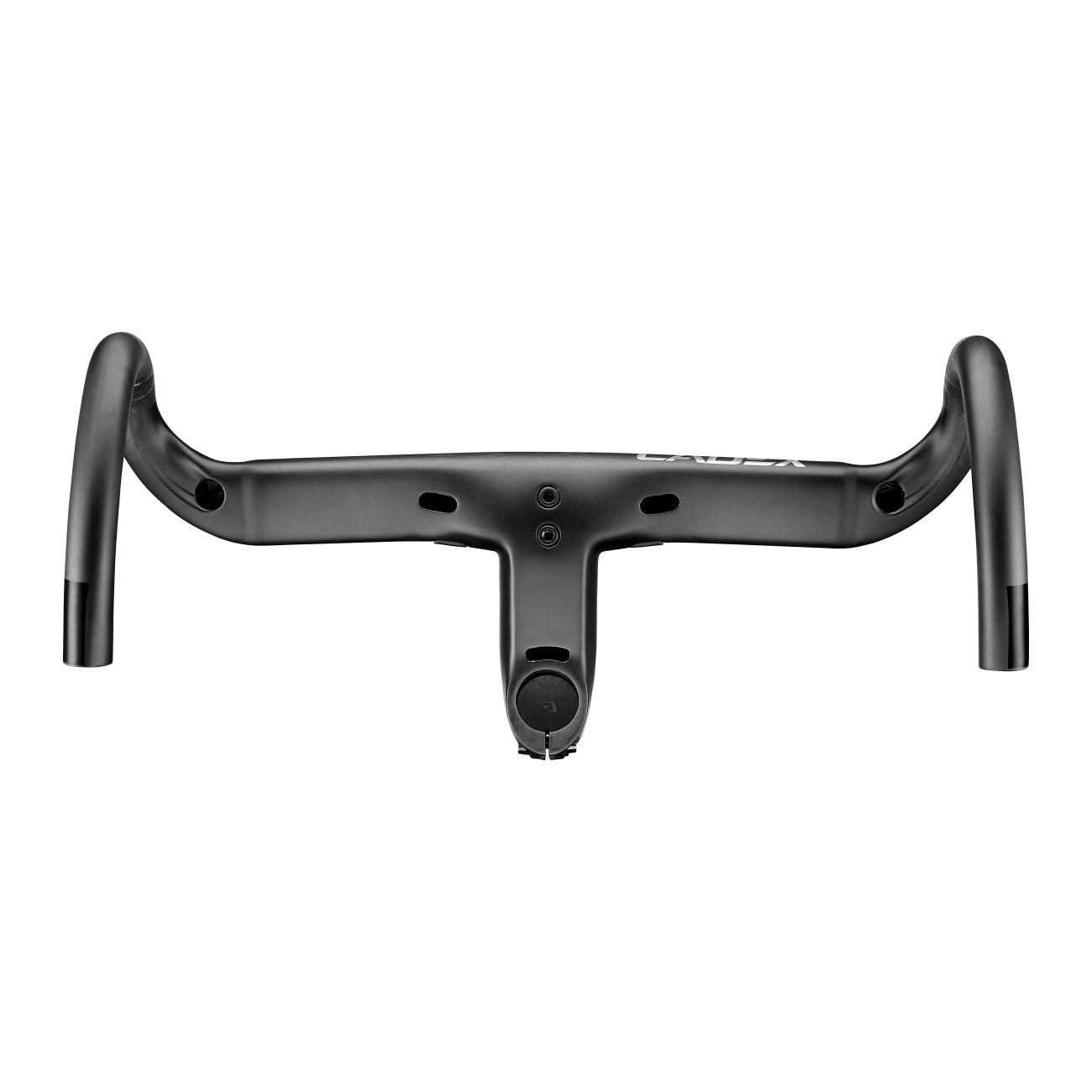

Integrated bar and stem construction with internal cable routing for improved aerodynamic performance.
One-piece construction using high-quality materials such as carbon fiber and high-precision lay-up methods to eliminate unnecessary weight.
The Cadex areo integrated handlebar is compatible with 1-1/4”, 1-1/8” steerer tubes and OverDrive Aero carbon spacers are included.
Technical Specifications:
- Material: Cadex Carbon.
-
Stem angle: -10 degrees.
- Handlebar clamp: 1-1/4” and 1-1/8” (with carbon spacer included).
- Width (drop to drop): 360/ 380/ 400/ 420 mm.
- Width (hood to hood): 340/ 360/ 380/ 400 mm.
- Drop: 125mm.
- Reach Cadex: 80mm (72mm per 360mm bar).
- Flare: 3 degrees.
- Backsweep: 2 degrees.
- Weight: 325g (420*100).
- Accessories Included: 1 1/8 spacer, OverDrive Aero spacer, 2021-2023 TCR spacer, OverDrive Aero shim 1 1/4” to 1/8” shim, CADEX out-front computer mount.
